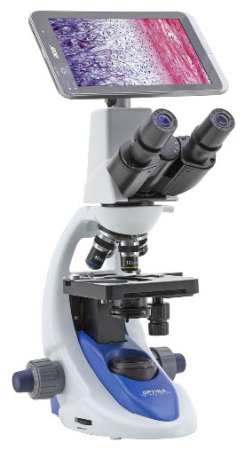

B-190TB with Tablet 10.1”
- You can rotate the tablet on the microscope in all directions, so it can be used as a microscope demonstration
- Simultaneous data and power feed makes it ideal for long-term operation
- Tablet PC can be easily detached from the microscope and used as a laptop
- PATENT PENDING
Binocular with double layer stage, objectives 4x 10x 40x 100x
Binocular Digital observation head, inclined 30° and rotatable 360°.
Diopter adjustment on left eyepieces.
Interpupillary adjustment 48-75 mm.
Widefield eyepieces WF10X/18 with field number 18mm.
Quadruple revolving nosepiece, rotation on ball bearings.
Achromatic objectives with mechanical tube lenght 160 mm, made by following objectives:
-) Achromatic DIN 4X, A.N. 0.10, W.D. 18 mm
-) Achromatic DIN 10X, A.N. 0.25, W.D. 7 mm
-) Achromatic DIN 40X, A.N. 0.65, W.D. 0,53 mm
-) Achromatic DIN 100X, A.N. 1,25, W.D. 0,13 mm (oil immersion)
All objectives are treated with an anti-fungus treatment.
Double layer with mechanical sliding stage, size 125x115mm, X-Y movement range 70x30, specimen holder for one slide. Vernier scale on the two axes, accuracy 0,1 mm.
Digital camera resolution: 3.14 MegaPixels
Signal output: USB 2.0
Sensor size: 1/2.5”
Sensor technology: CMOS
Image format: 4/3 Full
Image Size: 2048x1536. NO driver (microsoft driver).
Capture features: continuous auto exposure, image size, image capture, compressed video capture.
Control parameters: brightness, gain, exposure time, colors, color enhancement..
2GB standard memory.
Windows 10 32-bit.
LED 10.1” IPS Multi Touch Screen,
